Overview

…The clock has an excellent feature set that is extremely flexible for our multi room facility.”

Mike Crossey is now based between Los Angeles and the prestigious Livingston Studios in London, arguably the highest spec studio in the UK. He is currently working with Josh Record, Nina Nesbitt, and Imelda May. Mike has produced a string of recent hits with artist Jake Bugg, Tribes, Two Door Cinema Club, and previously has worked with Arctic Monkeys, Black Keys, Keane, Foals, The Kooks, Razorlight, and The Enemy

THE BEST SOUNDING MASTER CLOCK

A master clock that stands out

In the fickle world of Audio & Video formats, Trinity is the Master Clock that stands out from the crowd, with the kind of features that others can only aspire to. With dedicated functions and controls, Trinity is the best sounding and most versatile Master Clock available anywhere. Installed in some of the most prominent audio and post production facilities around the globe, Trinity is in the roots of great percentage of the contemporary music and movie productions. Trinity is also an integral component of some of the largest live concerts and events nowadays.

isochrone trinity features

http://antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/basic_target.svg

64-BIT DSP ACOUSTICALLY FOCUSED CLOCKING

A new level of detail via 4th Generation of Acoustically Focused Clocking employing 64 bit DSP

http://antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/arrows_move.svg

SUPREME CLOCKING

Supremely low jitter thanks to our Oven Controlled Crystal Oscillator or sync via Atomic Input

http://antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/music_shuffle_button.svg

384 KHZ SAMPLE RATE

Sample rate up to 384 kHz, 3 independent & simultaneous audio generators & 3 independent audio channels

The legendary Trinity

DESCRIPTION

NEXT LEVEL OF PERFECTION

Stable clocking and advanced jitter management

Powered by an ultra stable oven controlled crystal oscillator, Trinity’s completely redesigned timing engine with 4th generation 64-bit Acoustically Focused Clocking provides supremely low jitter and high stability, with distinct sonic advantages that are immediately apparent.

An atomic input makes it a perfect match for the 10M Atomic Clock, while user re-calibration and dual redundant power supply will keep the unit running smoothly and prevent costly downtime.

…I’ve tried many different permutations of clocking systems and have had varied results which left me unsure whether there was anything to be gained from a stable external clock. Having used the Antelope 10M and Trinity I can safely say the difference was truly staggering!”

paulepworthantelopeprPaul Epworth is one of the most influential British producer of his generation. His recent production roll-call reads like a must-have list for right-minded music fans: Adele’s ‘21’, Florence + The Machine’s ‘Ceremonials’ and ‘Lungs’, The Big Pink’s ‘Brief History Of Love’ and ‘Future This’, Foster The People ‘Torches’, Cee-Lo Green’s ‘The Lady Killer’, Friendly Fires’s ‘Pala’, Plan B’s ‘The Defamation Of Strickland Banks’…

AS PRO AS YOU CAN GO

The features that make it unique

Trinity takes care of requirements that usually would have needed several units. With 3 HD and 2 SD generators the unit locks to and generates all known professional video format, while simultaneously offering 3 independent audio channels capable of 384 kHz with varispeed adjustment in cents or percent!

With its wealth of connectivity, flexibility, and ease of use, Trinity is the ideal linchpin for a modern studio.

easy Monitor Controlling

Suited for every environment

The fully integrated monitor controller employs 0.05 dB accurate gold-plated relay attenuators and provides speaker switching, bass management and cue mix functions with integrated talkback.

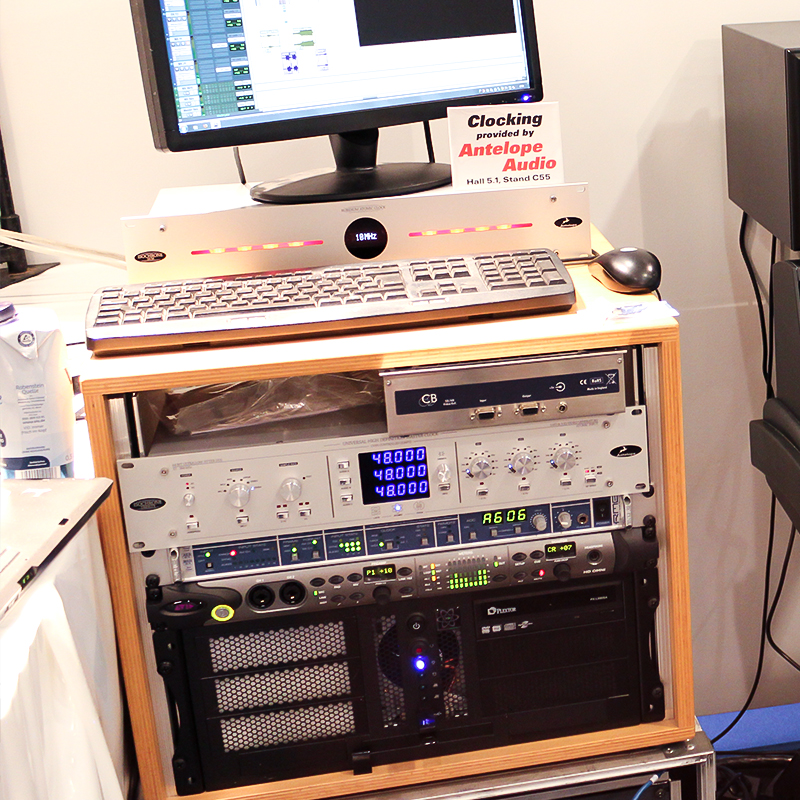

10M’s FAVORITE companion

Trinity and 10M go together well

You might have seen them independently, but usually where’s one, the other is close by.

VIDEO TUTORIALS

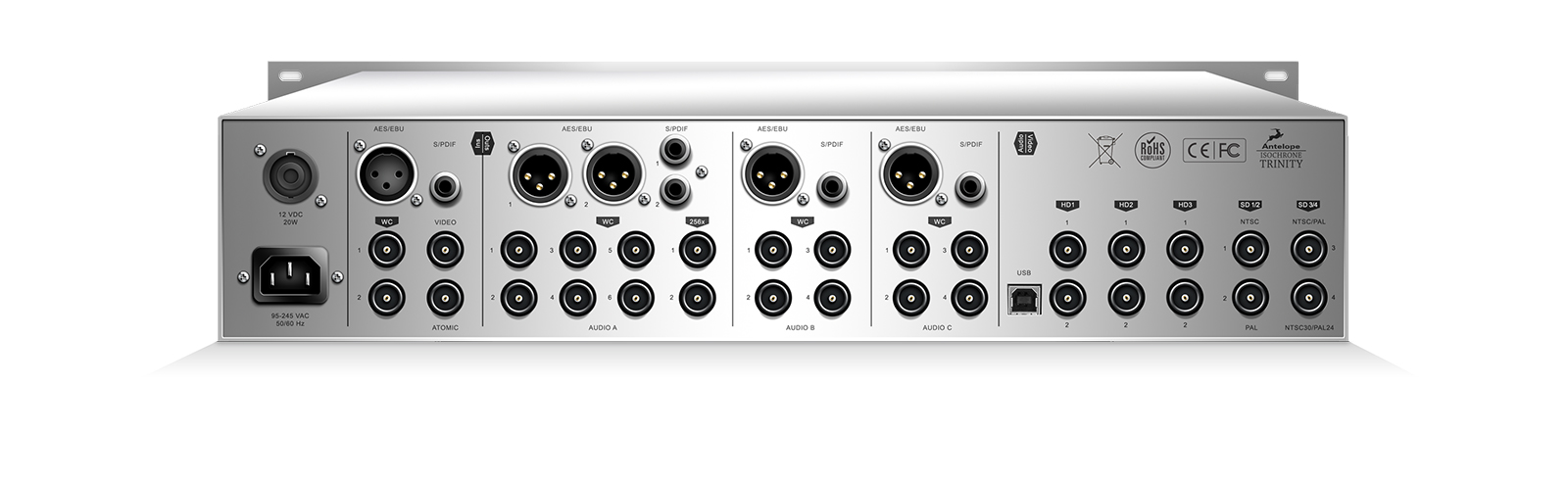

Connectivity

Specifications

    • Clocking System

4th Generation Acoustically Focused Clocking
64 bit DDS
Oven Controlled Crystal Oscillator

    • Stability:

< +/-0.02ppm @ 64.5°C

    • Ageing

< 1 ppm per year

    • Calibration

< +/-0.001 ppm

    • Atomic Clock Input

10MHz@1Vpp, BNC

    • Basic sampling rates (kHz)

32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384

    • Generators

9 Independent and simultaneous: 3 audio, 3 HD, 3 SD

    • Varispeed

+/-200 cents
+12.246%
-10,910%

    • Pull ups/downs

+/- 0.1% NTSC and/or +/- 4% PAL
-0.1% HD

    • Inputs

Universal video input on BNC.
Recognizes all video formats automatically
2 selectable Word Clock on BNC 32kHz – 384kHz
1 AES/EBU on XLR. 32kHz – 192kHz @110Ω terminated
1 S/PDIF on RCA. 32kHz – 192kHz @75Ω terminated

    • USB

2.0 full-speed

    • Outputs

HD Video 6xBNC @75Ω
SD 1 – BNC @75Ω fixed for NTSC video standard. Black Burst
SD 2 – BNC @75Ω fixed for PAL video standard. Black Burst
SD 3 – BNC @75Ω PAL 24/NTSC 30 selectable.Composite Sync
SD 4 – BNC @75Ω PAL 48/PAL 47.95 selectable. Composite Sync
Wordclock – 16 BNC, 3Vpp @ 75Ω
AES/EBU – 4 XLR @ 110Ω
S/PDIF – 4 RCA @ 75Ω

    • Operating Temperature

0-50°C, 32-122°F

    • Weight

4 kg / 8.8 lb

    • Dimensions (Approx)

482 mm (W) × 89 mm (H) × 203 mm (D)
19’’ (W) x 3.5’’ (H) x 8’’ (D)
