Overview

A PSU especially designed to fit your Zodiac DAC

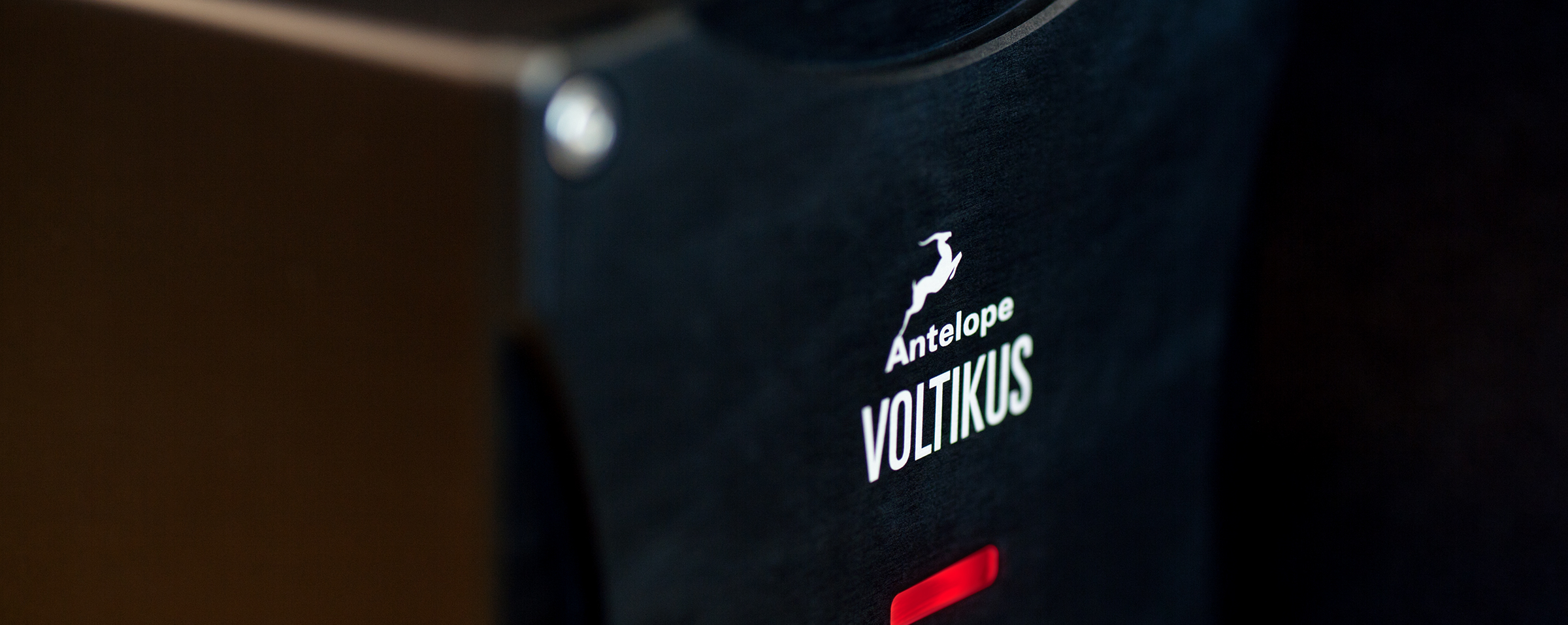

Voltikus is a sleek heavy-duty Power Supply Unit (PSU)

The Voltikus was designed to perfectly match your Zodiac DAC. Carefully tailored to deliver uncompromising power, Voltikus helps Zodiac achieve the punch and sonic richness of deep lows, a full range of mids, and tightly defined highs. This degree of performance is accomplished by incorporating a hefty, custom-wound, electrostatic-shielded toroidal transformer followed by a unique concept of three cascaded power regulators.

Voltikus paired with the Zodiac Platinum

Features

http://antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/weather_lightning.svg

Audiophile grade PSU

perfectly matching Zodiac DACs in aesthetics and performance

http://antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/arrows_expand.svg

Wide input voltage range

Input voltage range between 90-250V ensures dependable operation under varying line conditions

http://antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/arrows_fit_horizontal.svg

superior stability

Unique multi-stage linear regulator topology achieves vastly superior stability

http://antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/weather_windgust.svg

built to last

Sturdy construction with custom machined aluminum front panel

http://antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/music_note_single.svg

NO EXTRA NOISE

Ground/Lift switch helps eliminate hum and buzz caused by ground loops

http://antelopeaudio.com/wp-content/themes/salient/css/fonts/svg/software_remove_vectorpoint.svg

NO disturbance

Toroidal transformer with custom electrostatic shield suppresses power line disturbances

DESCRIPTION

Unprecedented stability

Precision laser-trimmed voltage reference (LT1021)

This serves as the backbone of this discrete design, achieving the stability impossible with off-the-shelf voltage regulators. Voltikus is a true engineering breakthrough from Antelope’s respected team of high-end audio experts.

Specifications

    • Input power

Nominal ~100-120 / ~220-240 V, 50 or 60 HZ
Actual ~90-264 V, 50 or 60 HZ
2x Fuses 0.5A, ~250 V, 5mm x 20mm, Type T

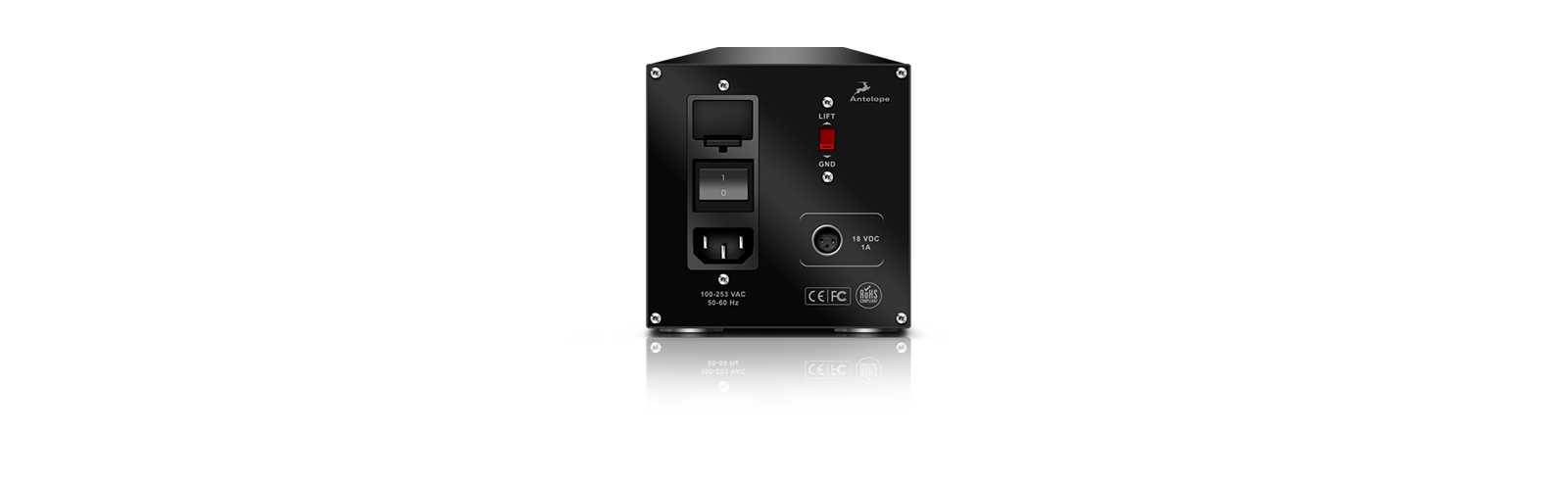

Input Power Cord 3-Wire grounded / Lifted option
Terminals C14 panel mounted male connector (inlet)

    • Output

Voltage 18V
Power (maximum) 18W
Terminals Mini XLR
Safety Features
Overlod/short circuit protection Automatic power limit / short circuit protection
Input line Protection Fuse on both hot and neutral

    • Environmental

Operating Temperature 0-50ºC/32-122ºF

    • In The Box

Audiophile grade ultra low noise power supply
Printed Documentation
DC Power cable

    • Dimensions

Width: 107 mm/4.2”
Height: 112 mm/4.4”
Depth: 168 mm/6.6”

    • Weight

2.5 kg/5.6 lb
